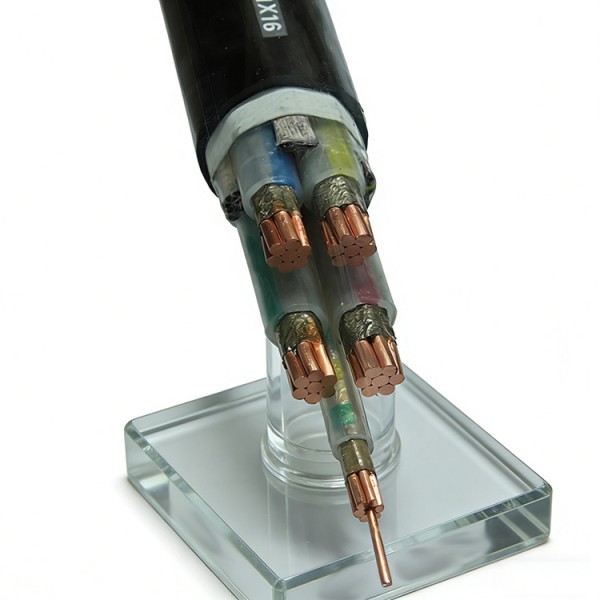

WDZN-YJV Fire Resistant Power Cable is a specialized low-voltage power cable developed for electrical systems that require improved fire safety performance and stable power supply capability. The cable structure shown in the product image consists of multiple functional layers, including copper conductor, XLPE insulation, fire-resistant barrier layer, filling material, and protective outer sheath.
The cable adopts a copper conductor to achieve efficient current transmission, while the XLPE insulation system provides reliable electrical separation and thermal performance. The additional fire-resistant layer helps maintain circuit operation for a certain period when exposed to fire conditions, making it suitable for power circuits where interruption may affect safety and operation.
With a rated voltage of 0.6/1kV, WDZN-YJV cable is commonly applied in buildings, public facilities, industrial systems, and emergency power distribution networks.
Product Features
1. High Conductivity Copper Conductor
The conductor is manufactured from high-quality copper material with stable electrical conductivity and low resistance.
The copper core design helps improve energy transmission efficiency and supports continuous operation in power distribution systems.
2. XLPE Insulation with Enhanced Thermal Performance
The insulation layer uses cross-linked polyethylene (XLPE), which offers stable performance under electrical and thermal stress.
Main characteristics include:
- High insulation resistance
- Good heat resistance
- Low dielectric loss
- Resistance to moisture and aging
This insulation structure helps maintain consistent electrical performance throughout the cable service period.
3. Fire Resistant Layer for Emergency Circuits
A dedicated fire-resistant layer is integrated into the cable structure to improve protection during fire exposure.
It helps maintain the electrical connection of important circuits, supporting continuous operation of essential equipment during emergency situations.
4. Low Smoke and Halogen-Free Option
The cable can be manufactured with LSZH materials according to project requirements.
During combustion, low smoke halogen-free materials help reduce toxic gas emission and improve safety in enclosed environments.
5. Durable Outer Protection
The external sheath provides mechanical and environmental protection for the internal cable layers.
It helps the cable withstand:
- Installation stress
- Surface abrasion
- Moisture influence
- Daily environmental exposure
6. Customized Structure Available
Different cable configurations can be produced according to application requirements, including:
- Conductor cross section
- Number of cores
- Sheath material
- Fire performance grade
- Cable marking
Cable Structure Description
Copper Conductor
The central conductive part transfers electrical energy with high conductivity and stable current carrying capability.
Fire Resistant Layer
Located around the insulation system, this layer provides additional protection when the cable is exposed to high-temperature fire conditions.
XLPE Insulation
The insulation layer separates conductors and provides electrical protection during normal operation.
Filling & Wrapping Materials
These components maintain the cable shape and improve structural stability.
Outer Sheath
The protective jacket shields the internal components from external mechanical and environmental influences.
Product Application Fields
Building Power Distribution
WDZN-YJV cable is widely used in residential buildings, office towers, shopping centers, and commercial complexes where electrical safety is an important consideration.
Emergency Power Supply Systems
The cable is suitable for circuits connected to:
- Emergency lighting
- Fire pumps
- Fire alarm systems
- Safety monitoring equipment
Medical Facilities
Hospitals and healthcare buildings require stable electricity supply for critical equipment. Fire-resistant cables can be used in related power distribution circuits.
Transportation Infrastructure
Suitable for:
- Subway stations
- Railway facilities
- Airports
- Underground passages
where reliable electrical operation is required.
Industrial Power Networks
Used in factories, workshops, and industrial plants for equipment power supply and internal distribution systems.
FAQ
Q1: What is WDZN-YJV cable?
A: WDZN-YJV is a fire-resistant power cable that uses copper conductor and XLPE insulation. It is designed for electrical systems requiring improved fire safety performance.
Q2: What is the difference between WDZN-YJV and normal YJV cable?
A: Both cables use XLPE insulation and copper conductors. The main difference is that WDZN-YJV includes a fire-resistant structure designed for applications where maintaining circuit operation during fire conditions is required.
Q3: What voltage rating does WDZN-YJV support?
A: The common voltage rating is 0.6/1kV, suitable for low-voltage power distribution systems.
Q4: Where can this cable be installed?
A: It can be installed in buildings, cable trays, conduits, underground systems, and other fixed electrical installations according to project requirements.
Q5: What materials are used for insulation?
A: The main insulation material is XLPE (Cross-linked Polyethylene), which provides electrical insulation and thermal stability.
Q6: Is LSZH sheath available?
A: Yes. Low smoke halogen-free sheath materials can be provided according to customer requirements.
