Rubber Cable Mining Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty

  • 1
  • 2
  • 3

Brand Name : f.t

Insulation Material : Rubber

MOQ : 300

Working Temperature : 70°C

MOQ : 1000M

Packaging Details : Wooden Drum、cardboard box、wooden pallet

Jacket : Rubber

Certification : Coal Mine Safety Certification

Price : usd 1～ 10/ meter

Product name : Mining cable

Sheath : PVC/Rubber/Customization

Supply Ability : 800–1500 kilometers per month

Application : Mining, under the mine,Drill connection, movable coal cutter under the mine

Type : Low voltage

Payment Terms : Western Union,T/T,D/P,D/A,L/C

Place of Origin : Shaanxi, China

Size : 3*95 mm² + 1*50 mm², 3*70 mm² + 1*35 mm², 3*50 mm² + 1*25 mm²

Conductor : Copper

Rated Voltage : 8.7 kV, 10 kV

Delivery Time : 30 days

Conductor Material : Bare Copper Strand

Model Number : MC/MYP/MYQ/ MYJV

Contact Now

Mining Power Cable Rubber Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty
Product Description
Mining cables are specialized cables designed specifically for underground mines and surface mining equipment. Their core features include explosion-proof, flame-retardant, and harsh environmental performance. They can operate safely in high-risk environments such as gas, dust, moisture, and mechanical shock. They are key components for power transmission and signal control in mines.
Mining cables must comply with national standards such as GB/T 12972-2020 and the coal industry standard MT/T 818. Core requirements include flame retardancy, impact resistance, abrasion resistance, and corrosion resistance. In some scenarios, they must also meet explosion-proof requirements.
Rubber Cable Mining Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty
Category
Core Application
Core Application
Common Model
Classification by Application
Mining Power Cable (Electricity Transmission)
Used to transmit high-voltage or low-voltage electricity underground in coal mines, such as powering large equipment such as coal
mining machines, conveyors, and water pumps.
MVV/MVV22
MYJV/MYJV22
MYPTJ
Mine control cable (transmitting control signals)
Used for signal transmission of underground coal mine control equipment, such as control switches, valves, sensors, etc.,
requiring strong anti-interference performance.
KVV/KVV22 KYJV/KYJV22 MKVV/MKVV22
Mine signal cable (transmitting detection signals)
Used to transmit weak signals from sensors and monitoring equipment (such as gas concentration, temperature, and pressure
signals), it requires extremely high shielding properties.
MHYV
MHYVP
MHYVRP
Mining Rubber-Sheathed Cable (Specially for Mobile Equipment)
For use with mobile equipment in underground coal mines (such as shearers, roadheaders, and face conveyors). Features excellent flexibility, bending resistance, and impact resistance.
MY
MYP
MYQ
Specification
Item
Mining cable
Conductor
Bare copper wire
Insulation
Rubber compound
Outer sheath
Rubber compound
Rated Voltage
0.6/1KV
Rated Temperature
* Occasionally moved: -25°C up to +90°C
* Fixed installation: -40°C to +90°C
Applicatioin
Application range
* For mining as well as surface mining
* Connection for moving equipment and machinery
* Under extreme environmental conditions
* Suitable for outdoor use, as well as in dry and damp interiors

Rubber Cable Mining Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty

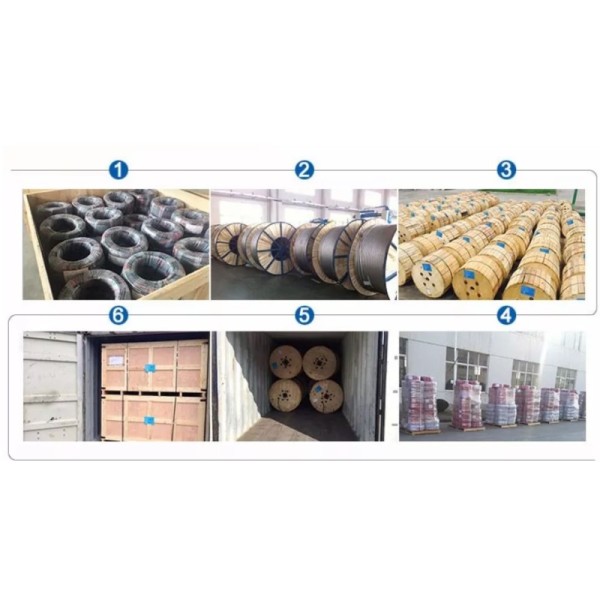

Packing & Delivery
Rubber Cable Mining Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty

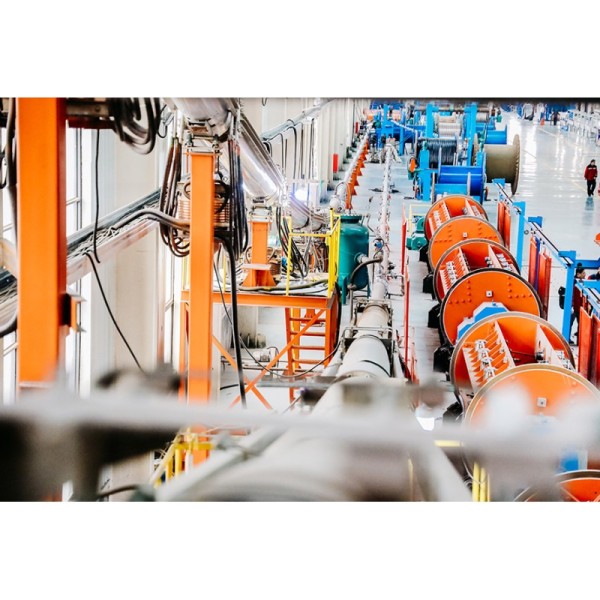

Company Profile
Rubber Cable Mining Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty


Rubber Cable Mining Cable 10mm-240mm Standard Copper EPR PCP Heavy Duty

F. T Cable Co., Ltd is a comprehensive enterprise integrating "R&D", "production", "sales" and "after-sales". It can produce 6 categories, more than 500 varieties, and more than 16,000 specifications of wires and cables. Such as cross-linked power cables, medium-voltage/high-voltage power cables, PVC power cables, branch cables, control cables, flame-retardant cables for coal mines, flame-retardant and fire-resistant cables, low-smoke and low-halogen cables, low-smoke halogen-free cables, overhead cables, rubber sheathed cables, PVC wires, steel-core aluminum stranded wires, silicone cables, etc.
