6mm Solar Cable 10Awg Solar PV Cable Twin Core 2.5mm For Solar Panel

  • 1
  • 2
  • 3

Type : low voltage

Sheath : XLPO/XLPE

Conductor Material : Tin Plated Copper

Price : $0.5-1.5/m

Rated Voltage : 1500v

Packaging Details : Wooden Drum、cardboard box、wooden pallet

IP Level : IP67/ IP68

Working Temperature : - 45 °+120 °

Rated Current : 55A

Specification : 6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²

Model Number : PV1-F

Jacket : PVC

Certification : tuv

Delivery Time : 30 days

Payment Terms : L/C,D/A,T/T,D/P,Western Union

Supply Ability : 800–1500 kilometers per month

Brand Name : F.T

Size : 6mm, 4MM, 10MM, 2.5MM

Place of Origin : Shaanxi, China

MOQ : 1000

Application : Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/

Model : PV1-F

Contact Now

6mm Solar Cables 10 Awg Solar Pv Cable Twin Core 2.5Mm For Solar Panel

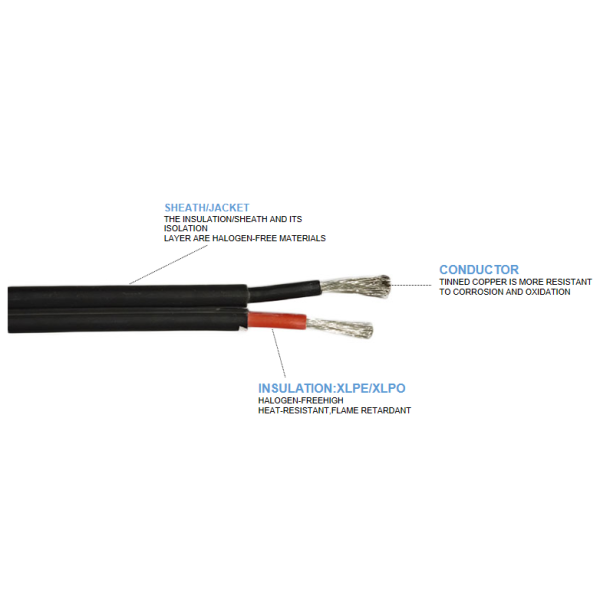

XLPO insulated sheathed photovoltaic solar cable Used to connect solar cells and photovoltaic modules. It adopts anti-oxidation tinned conductor, irradiation cross-linked low-smoke halogen-free flame retardant polyolefin double insulation, has good mechanical structure strength, extremely durable outer sheath has good durability, and can effectively waterproof, resist chemical corrosion and ultraviolet, ozone and other chemicals.

Application
photovoltaic power, Construction, Industrial, Power Station
Rated Current
55A
Brand Name
F.T
Model Number
PV1-F
Type
LOW VOLTAGE
Sheath
XLPO/XLPE
Application
power station/Industrial/photovoltaic power/
Working temperature
- 40 ℃ - 125 ℃
Conductor material
tinned copper
Specification
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²

Conductor cross‑section(mm²) Conductor structure(n/mm) Stranded outer diameter(mm) Insul. Thick.(mm) Conductor resistance(Ω/km) Ampacity 60℃(A)
2*1.2 30/0.25 0.7 5.00*10.30 13.7 30
2*2.5 49/0.25 0.7 5.20*10.80 8.21 41
2*4.0 56/0.285 0.7 5.50*11.20 5.09 55
2*6.0 84/0.285 0.7 6.20*12.60 3.39 70
2*10.0 84/0.40 0.7 7.5*15.20 1.95 98
2*16.0 128/0.40 0.7 9.60*19.70 1.24 132

6mm Solar Cable 10Awg Solar PV Cable Twin Core 2.5mm For Solar Panel

Product Attributes

  • Product Name: PV1‑F Solar Cable
  • Model: PV1‑F
  • Cross‑section Area: 25mm²
  • Conductor Type: Tinned Copper, Fine Stranded Flexible Conductor
  • Insulation & Sheath Material: XLPE / XLPO Cross‑linked Polyolefin
  • Rated Voltage: DC 1.5kV
  • Operating Temperature: -40℃ ~ +120℃ (Short‑term up to 150℃)
  • Ampacity: 176A
  • Flame Retardant Grade: Low‑smoke Halogen‑free, IEC 60332‑1‑2
  • Certifications: TÜV EN 50618, UL4703, IEC
  • Service Life: 25 Years Outdoor
  • Core Type: Single‑core (Double‑core Customizable)
  • Application: Solar Panel DC Connection, Ground‑mount PV Station, Industrial & Commercial Rooftop Solar, Energy Storage System
  • Features: UV Resistant, Ozone Resistant, Hydrolysis Resistant, Salt Fog Resistant, High Flexibility, Corrosion Resistant
  • Customization: Length, Printing, Packaging, Insulation Material, Core Structure

Product Applications


This 25mm² PV1‑F solar cable is designed for high‑current DC wiring of photovoltaic systems, mainly used in scenarios requiring large power transmission and long‑distance laying.
Large‑scale ground‑mount solar farmsIdeal for desert, mountain, fishery‑PV and agriculture‑PV complementary power stations, used for main DC circuits and high‑current array connections.
  • Large‑scale ground‑mount solar farms
    Ideal for desert, mountain, fishery‑PV and agriculture‑PV complementary power stations, used for main DC circuits and high‑current array connections.
  • Industrial & commercial rooftop PV stations
    Suitable for large factories, warehouses and commercial buildings, connecting combiner boxes to inverters for long‑distance high‑power transmission.
  • Solar energy storage integrated systems
    Matches high‑capacity battery energy storage systems, conducting stable high‑current power between solar panels and energy storage units.
  • Special‑environment PV projects
    Works reliably in coastal salt‑fog areas, alpine cold regions and high‑temperature zones with strong anti‑aging and corrosion‑resistant performance.
  • Off‑grid large‑capacity solar power systems
    Used for island power supply, remote mining areas and outdoor base stations for long‑term stable power transmission.
