EVR New Energy EV 50mm 70mm Oxygen-Free Copper DC Charging Cable
Product Introduction
EV cables are specialized cables used for power transmission in high-voltage battery harnesses and motor leads of new energy vehicles. These cables typically require a range of important properties, such as high voltage resistance, high temperature resistance, electromagnetic interference resistance, and stable signal transmission, to ensure normal system operation during charging or driving. Furthermore, EV cables need to be highly flexible and easy to install to adapt to the space constraints and frequent bending within the vehicle.
Key Performance Characteristics of EV Cables
Electrical Performance
| Cross-sectional Area(mm²) |
Number of Strands |
Max. Strand Diameter (mm) |
Max. Conductor D. (mm) |
Max. DC Resistance (20°C) (Ω/km) |
Insulated Core Size - Nominal Thickness (mm) |
Insulated Core Size - Min Thickness (mm) |
Insulated Core Size - Min. OD (mm) |
Insulated Core Size - Max. OD (mm) |
Cable Construction - Sheath Nominal Thickness (mm) |
Cable Construction - Sheath Min Thickness (mm) |
Cable Construction - Cable Min. OD (mm) |
Cable Construction - Cable Max. OD (mm) |
| 10 |
320 |
0.21 |
4.5 |
1.82 |
1.00 |
0.80 |
5.90 |
6.50 |
1.30 |
0.80 |
9.10 |
9.70 |
| 16 |
510 |
0.21 |
6.3 |
1.16 |
1.10 |
0.82 |
7.70 |
8.30 |
1.30 |
0.80 |
10.90 |
11.70 |
| 25 |
790 |
0.21 |
7.8 |
0.743 |
1.30 |
1.04 |
9.40 |
10.40 |
1.50 |
1.00 |
13.20 |
14.50 |
| 35 |
1090 |
0.21 |
9.0 |
0.527 |
1.50 |
1.04 |
9.60 |
11.60 |
1.50 |
1.00 |
13.40 |
15.70 |
| 50 |
1600 |
0.21 |
10.5 |
0.368 |
1.50 |
1.20 |
11.50 |
13.50 |
1.70 |
1.16 |
15.70 |
18.00 |
| 70 |
2175 |
0.21 |
12.5 |
0.259 |
1.50 |
1.20 |
13.50 |
15.50 |
1.70 |
1.16 |
17.70 |
20.00 |
| 95 |
3000 |
0.21 |
14.8 |
0.196 |
1.50 |
1.20 |
16.00 |
18.00 |
1.70 |
1.16 |
20.20 |
22.50 |
| 120 |
3700 |
0.21 |
16.5 |
0.153 |
1.50 |
1.20 |
17.70 |
19.70 |
1.70 |
1.16 |
21.90 |
24.20 |
Application Scenarios
Residential EV Charging: Suitable for home wall-mounted chargers (3.3kW-7kW), with flexible design for easy installation in garages or outdoor spaces, ensuring safe and efficient daily charging.
Commercial DC Fast Charging Stations: Ideal for 50kW-350kW DC fast charging systems, with high-conductivity copper conductors to support high-current charging, reducing energy loss and improving charging efficiency.
EV Battery Packs & Internal Wiring: Used for high-voltage connections inside EV battery packs and automotive wiring systems, with stable performance and strong anti-interference ability, complying with ISO 6722, ISO 19462 standards.
Industrial & Public Charging Facilities: Adaptable to harsh industrial environments, such as factory EV fleets, public charging stations, and parking lot charging piles, with excellent resistance to oil, corrosion, and UV radiation.
FAQ
Q: What is the advantage of copper conductors over aluminum conductors?
A: 99.99% high-purity copper (1.6x more conductive than aluminum), lower DC resistance, minimal energy loss, better thermal stability/oxidation resistance, secure connector crimping, and 30+ year service life.
Q: Are your cables compatible with all mainstream EV models?
A: Yes. Compatible with EVE/EVT/EVJE/EVJT types (10-120mm², 32A-125A), suitable for all mainstream EVs and charging scenarios (residential AC, commercial DC fast charging, battery pack wiring).
Q: What certifications do your cables have?
A: Globally certified (UL 2263, CE, TUV 2 PFG 1940, RoHS, GB/T 33594) and compliant with IEC 60332-1, ISO 6722/19462, meeting global EV charging safety standards.
Q: Can the cable withstand harsh outdoor/industrial environments?
A: Yes. -40°C~105°C operating range, XLPE insulation + PUR sheath, resistant to oil, acid, UV and hydrolysis, suitable for harsh outdoor/industrial use.
Q: Do you offer customized services?
A: Yes. For bulk orders, we customize cross-sectional area, length, color, certifications, and provide installation/debugging technical support.
Product Tags:
|
|

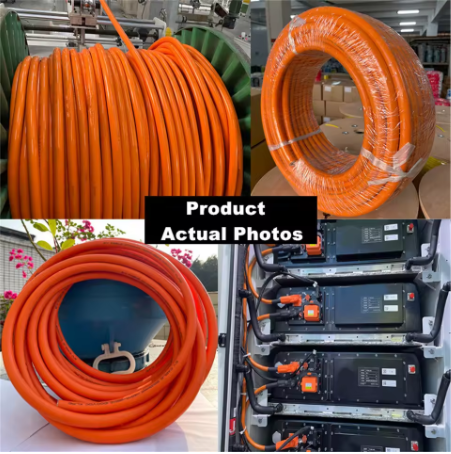

EVR New Energy EV 50mm 70mm Oxygen Free Copper DC Charging Cable Images
|
