EV HV Cable Shielded And Unshielded Cable XLPE Insulated PVC Cables For New Energy Vehicle

Type : EV

Brand Name : F.T

Place of Origin : china

Certification : CE，VDE,SO 9001

Price : usd 1.99～ 45.99/ meter

Conductor Material : Copper

MOQ : 1000

Application : Power

Delivery Time : 30 days

Model Number : ev cable

Packaging Details : Wooden Drum、cardboard box、wooden pallet

Certificate : CE ROHS

Supply Ability : 800–1500 kilometers per month

Insulation Material : XLPE

Payment Terms : L/C,D/P,D/A,T/T,Western Union

Contact Now

High Voltage EV Cable Shielded And Unshielded Cable XLPE Insulated PVC Cables For New Energy Vehicle

Product Introduction

This high voltage EV cable is engineered exclusively for new energy vehicle high-voltage systems. It comes in both shielded and unshielded types, adopting XLPE as core insulation and durable PVC for outer sheath. The combination delivers reliable electrical performance, solid mechanical protection and wide environmental adaptability. Widely applied in vehicle internal wiring, charging systems and related new energy equipment, it is a dependable wiring solution for electric vehicles and supporting facilities.

SIZE	20°C MAXIMUM CONDUCTOR RESISTANCE	RATED VOLTAGE	20°C LOAD ACCEPTANCE CURRENT
2.5mm²	7.6	1.5kV	30A
4mm²	4.71	1.5kV	40a
6mm²	3.14	1.5kV	52A
10mm²	1.82	1.5kV	75A
16mm²	1.16	1.5kV	100A
25mm²	0.743	1.5kV	125A
35mm²	0.527	1.5kV	165A
50mm²	0.368	1.5kV	215A
70mm²	0.259	1.5kV	260A
95mm²	0.196	1.5kV	320A
120mm²	0.153	1.5kV	370A
150mm²	0.129	1.5kV	430A

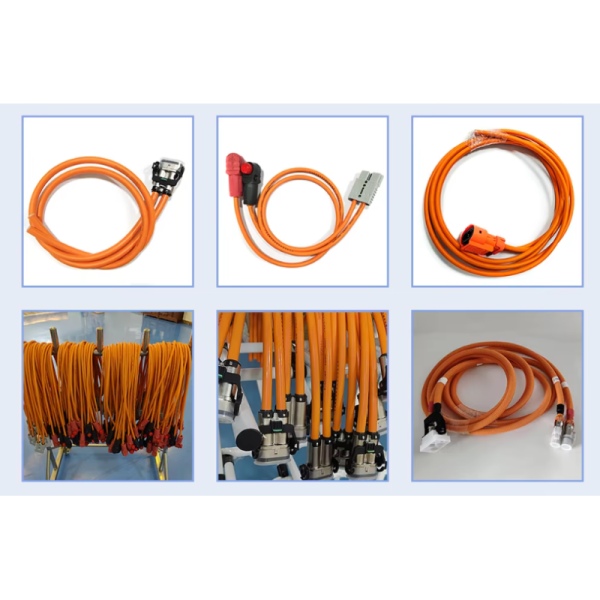

EV HV Cable Shielded And Unshielded Cable XLPE Insulated PVC Cables For New Energy Vehicle

Product Features & Strengths

Reliable XLPE Insulation

Cross-linked polyethylene insulation boasts excellent dielectric strength and stable insulation performance under high voltage. It resists heat aging effectively, will not soften or deform easily under long-time high temperature operation, and maintains stable insulation property throughout the whole service cycle. It also features low dielectric loss, ideal for continuous high-voltage power transmission.
Durable PVC Outer Sheath

The PVC outer layer provides strong physical protection against abrasion, compression and tear. It stands well against common chemical substances like engine oil and detergent used in vehicle environment. The material also has good weather resistance, suitable for indoor vehicle wiring and outdoor charging equipment layout.
Two Structure Options for Different Usage

Shielded version adds tinned copper braided shielding layer. It blocks external electromagnetic interference effectively, prevents signal disturbance inside vehicle electronic and charging systems, fully meets EMC requirements for new energy vehicles. Unshielded type features simpler structure, cost-effective and easy for installation, perfect for conventional high-voltage loops with low interference demand.
Premium Copper Conductor

Adopts multi-strand stranded copper conductor. This design improves cable flexibility and lowers conductor resistance. Under large current load, it generates less heat and ensures steady power delivery. The stranded structure also makes the cable easy to bend and route inside narrow vehicle spaces.
Wide Temperature Adaptability

The cable can work normally at temperature from -40℃ up to 125℃. It copes with cold winter climate and heat generated by long running vehicles, keeps consistent performance in various driving and parking environments.
Customization & Service
- Size customization: Non-standard cross-section sizes can be produced as per drawings
- Structural customization: Double insulation, special shielding density available
- Appearance customization: Custom colors and fixed cutting length supported
- Technical support: Provide selection advice and parameter confirmation for project use
